Center Rear Three Point Seat Belt In Folding Backrest, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the rear belt end fitting in the center. Refer to REAR SEAT BELT ANCHOR IN CENTER SEATING POSITION, REMOVING AND INSTALLING .
-- Remove the right rear seat backrest. Refer to REAR SEAT BACKREST, REMOVING AND INSTALLING .
-- Remove the backrest cover and cushion. Refer to COVER AND CUSHION, REMOVING AND INSTALLING .

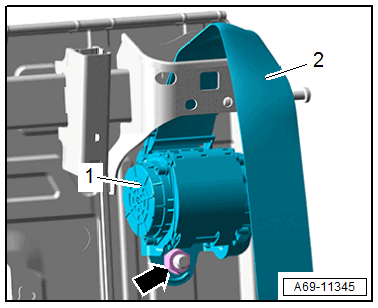

-- Remove the nut -arrow-.
-- Disengage the three-point seat belt -1- and remove it.
-- Guide out the seat belt webbing -2- with belt end fitting and the seat belt latch.
