Overview - Front Three-Point Seat Belt, USA And CANADA Market

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

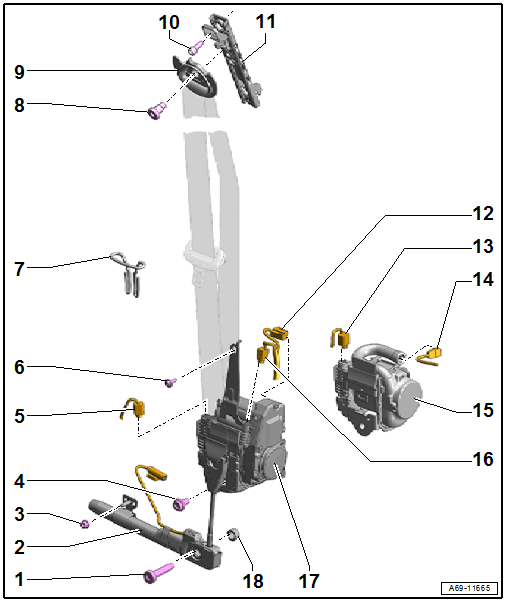

Fig 1: Exploded View Of Front Three-Point Seat Belt

Courtesy of AUDI OF AMERICA, LLC

Bolt
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- 40 Nm
Driver Seat Belt Tensioner Igniter 2 -N297-
- Can only be replaced together with the OVERVIEW - FRONT THREE-POINT SEAT BELT, USA AND CANADA MARKET => List Item:Left Front Seat Belt -NX10- / Right Front Seat Belt -NX11-.
- Passenger side: Front Passenger Seat Belt Tensioner Igniter 2 -N298-
- Refer to SEAT BELT TENSIONER 2, REMOVING AND INSTALLING, NORTH AMERICAN MARKET-SPECIFIC VERSION
Nut
- 4 Nm
Bolt
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- 45 Nm
Connector
- For
  - Driver Seat Belt Tensioner Igniter 1 -N153-
  - Front Passenger Seat Belt Tensioner Igniter 1 -N154-
Bolt
- 4 Nm
Seat Belt Guide
- Do not jam or damage the seat belt
- Refer to FRONT SEAT BELT GUIDE, REMOVING AND INSTALLING
Bolt
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- 45 Nm
Seat Belt Relay
Bolt
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- 27 Nm
Seat Belt Height Adjuster
- Seat belt height adjuster must be replaced if the belt tensioner has deployed with the belt buckled
- Refer to SEAT BELT HEIGHT ADJUSTER, REMOVING AND INSTALLING
Connector
- For
  - Left Front Seat Belt Tensioner Control Module -J854-
  - Right Front Seat Belt Tensioner Control Module -J855-
Connector
- For
  - Driver Belt Force Limiter -G551-
  - Front Passenger Belt Force Limiter -G552-
Connector
- For
  - Driver Seat Belt Tensioner Igniter 1 -N153-
  - Front Passenger Seat Belt Tensioner Igniter 1 -N154-
Left Front Seat Belt -NX10- / Right Front Seat Belt -NX11-
- Vehicles without an electric seat belt tensioner.
- with
  - Driver Belt Force Limiter -G551- / Front Passenger Belt Force Limiter -G552-
  - Driver Seat Belt Tensioner Igniter 1 -N153- / Front Passenger Seat Belt Tensioner Igniter 1 -N154-
- Refer to FRONT THREE-POINT SEAT BELT, REMOVING AND INSTALLING
Connector
- For
  - Driver Seat Belt Tensioner Igniter 1 -N153-
  - Front Passenger Seat Belt Tensioner Igniter 1 -N154-
Left Front Seat Belt -NX10- / Right Front Seat Belt -NX11-
- Vehicles with an electric seat belt tensioner
- with
  - Left Front Seat Belt Tensioner Control Module -J854- / Right Front Seat Belt Tensioner Control Module -J855-
  - Driver Belt Force Limiter -G551- / Front Passenger Belt Force Limiter -G552-
  - Driver Seat Belt Tensioner Igniter 1 -N153- / Front Passenger Seat Belt Tensioner Igniter 1 -N154-
- The Left Front Seat Belt Tensioner Control Module -J854- /Right Front Seat Belt Tensioner Control Module -J855- must be adapted after replacing the automatic belt retractor using the Vehicle Diagnostic Tester.
- Refer to FRONT THREE-POINT SEAT BELT, REMOVING AND INSTALLING
Stop Sleeves
