Component Location Overview - Seat Belts And Mounting Points

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

The overview shows a LHD vehicle as an example. For RHD vehicles the layout is a mirror image.

The Sportback Rest of World market-specific version is shown.

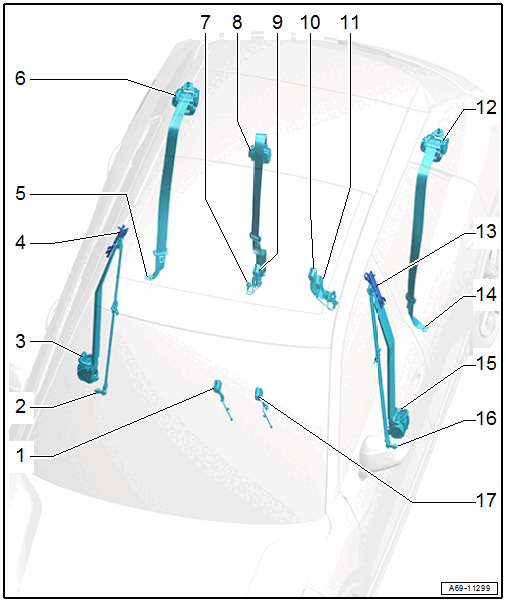

Fig 1: Exploded View Of Seat Belts and Mounting Points

Courtesy of AUDI OF AMERICA, LLC

Front Seat Belt Latch
- With Front Passenger Seat Belt Switch -E25-
- Refer to OVERVIEW - FRONT SEAT BELT LATCH
Front Belt End Fitting
- Refer to OVERVIEW - FRONT THREE-POINT SEAT BELT
Right Front Seat Belt -NX11-
- with
  - Front Passenger Seat Belt Tensioner Igniter 1 -N154-
  - Front Passenger Belt Force Limiter -G552-
  - Equipped on some models: Right Front Seat Belt Tensioner Control Module -J855-
- Refer to OVERVIEW - FRONT THREE-POINT SEAT BELT
Belt Height Adjuster/Front Seat Belt Guide
- Refer to OVERVIEW - FRONT THREE-POINT SEAT BELT
Right Rear Release Lever
- Refer to OVERVIEW - OUTER REAR THREE-POINT SEAT BELT
Automatic Belt Retractor
- For the right rear three-point seat belt
- With Passenger Side Rear Seat Belt Tensioner Igniter -N197-
- Refer to OVERVIEW - OUTER REAR THREE-POINT SEAT BELT
Rear Center Belt End Fitting
- Refer to OVERVIEW - CENTER REAR THREE-POINT SEAT BELT
Automatic Belt Retractor
- For the rear three-point seat belt in the center
- Refer to OVERVIEW - CENTER REAR THREE-POINT SEAT BELT
Right Rear Seat Belt Latch
- Equipment version with Passenger Side Second Row Seat Belt Switch -F392-
- Refer to OVERVIEW - REAR SEAT BELT LATCH
Center Rear Seat Belt Latch
- Equipment version with Center Second Row Seat Belt Switch -F391-
- Refer to OVERVIEW - REAR SEAT BELT LATCH
Left Rear Seat Belt Latch
- Equipment version with Driver Side Second Row Seat Belt Switch -F390-
- Refer to OVERVIEW - REAR SEAT BELT LATCH
Automatic Belt Retractor
- For the left rear three-point seat belt
- with Driver Side Rear Seat Belt Tensioner Igniter -N196-
- Refer to OVERVIEW - OUTER REAR THREE-POINT SEAT BELT
Belt Height Adjuster/Front Seat Belt Guide
- Refer to OVERVIEW - FRONT THREE-POINT SEAT BELT
Left Rear Belt End Fitting
- Refer to OVERVIEW - OUTER REAR THREE-POINT SEAT BELT
Left Front Seat Belt -NX10-
- with
  - Driver Seat Belt Tensioner Igniter 1 -N153-
  - Driver Belt Force Limiter -G551-
  - Equipped on some models Left Front Seat Belt Tensioner Control Module -J854-
- Refer to OVERVIEW - FRONT THREE-POINT SEAT BELT
Front Belt End Fitting
- Refer to OVERVIEW - FRONT THREE-POINT SEAT BELT
Front Seat Belt Latch
- With Driver Seat Belt Switch -E24-
- Refer to OVERVIEW - FRONT SEAT BELT LATCH
