Overview - Passenger Occupant Detection Sensor
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

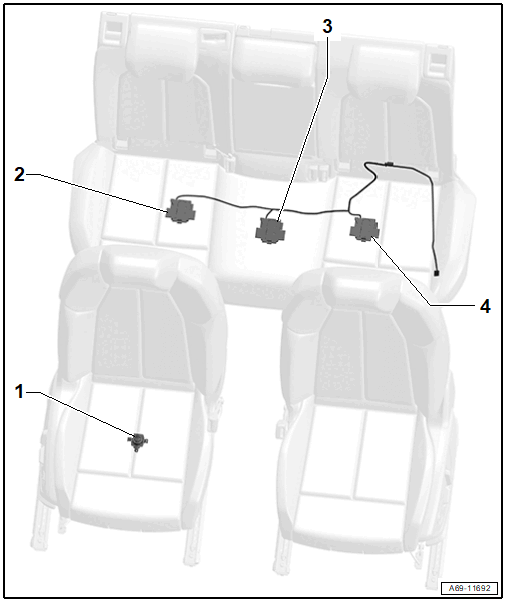

The overview shows a LHD vehicle as an example. For RHD vehicles the layout is a mirror image.
- Passenger Seat Occupant Detection Sensor -G128-
- For North American Region only
- Refer to Passenger Seat Occupant Detection Sensor -G128-, REMOVING AND INSTALLING
- Clip in the seat frame until it clicks into place
- Passenger Side Rear Seat Occupant Detection Sensor - G178-
- Refer to SEAT OCCUPANT DETECTION SENSORS -G177-, -G178- AND -G1010-, REMOVING AND INSTALLING
- Clip in the seat frame until it clicks into place
- Rear Center Seat Occupant Detection Sensor -G1010-
- Refer to SEAT OCCUPANT DETECTION SENSORS -G177-, -G178- AND -G1010-, REMOVING AND INSTALLING
- Clip in the seat frame until it clicks into place
- Driver Side Rear Seat Occupant Detection Sensor - G177-
- Refer to SEAT OCCUPANT DETECTION SENSORS -G177-, -G178- AND -G1010-, REMOVING AND INSTALLING
- Clip in the seat frame until it clicks into place
