Knee Airbag With Igniter, Removing And Installing, Driver Side: Removing

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

-- Pay attention to the safety precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS .

CAUTION:

Risk of airbag deployment.

Risk of injury.

- Check if the airbag indicator lamp turns on or blinks.

- If the airbag indicator lamp turns on or blinks, the DTC memory must be read.

- If >>short circuit to positive<< is a DTC memory entry, disconnect the battery. Refer to BATTERY, DISCONNECTING AND CONNECTING .

- If there is a DTC memory entry, the Guided Fault Finding instructions on the Vehicle Diagnostic Tester must always be followed.

- If the airbag indicator lamp does not turn on or blink, or there is no DTC memory entry with >>short circuit to positive<< : switch off the ignition, keep the ignition key outside of the vehicle and wait 10 seconds.

-- Move the steering wheel as far up and backward as possible to be able to use the entire steering column adjustment range.

-- Remove the instrument panel cover on the driver side. Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .

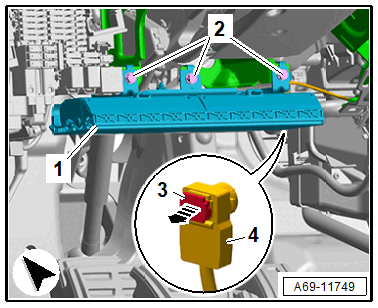

-- Remove the bolts -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the knee airbag -1- from the crossmember.

-- Carefully remove the knee airbag, until the connector -4- can be disconnected.

CAUTION:

Pyrotechnical components can deploy unintentionally.

Risk of injury.

- Discharge the static electricity: quickly touch the door striker.

-- Release the connector lock -3- with a small flat-head screwdriver -arrow-.

-- Disconnect the connector from the knee airbag igniter.

CAUTION:

Risk of airbag deployment

There is a risk of injury.

- Store the airbag with the cushion facing upward.
