Overview - Head Curtain Airbag
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

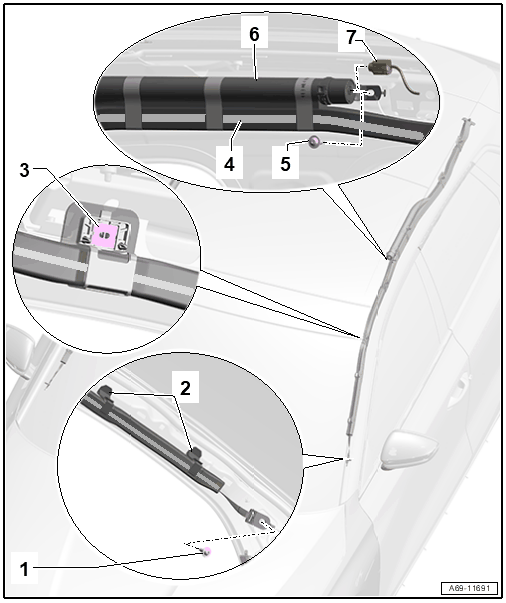

The Sportback is shown as an example.
- Bolt
- Replace after removing
- 5 Nm
- Clip
- Clip
- Available only with OVERVIEW - HEAD CURTAIN AIRBAG => List Item:Head Curtain Airbag
- Remove with Clip Pliers:VAS 211 001
- Colored Strip
- Serves as anti-rotation protector
- must be visible after assembly.
- Bolt
- Replace after removing
- 5 Nm
- Head Curtain Airbag
- with
- Driver Head Curtain Airbag Igniter -N251-
- Front Passenger Head Curtain Airbag Igniter -N252-
- Refer to HEAD CURTAIN AIRBAG WITH IGNITER, REMOVING AND INSTALLING
- with
- Connector
- For
- Driver Head Curtain Airbag Igniter -N251-
- Front Passenger Head Curtain Airbag Igniter -N252-
- For
