Head Curtain Airbag With Igniter, Removing And Installing: Installing
-- Engage the head curtain airbag -1- at the rear in the mount on the body -arrow A- and push forward.
-- Engage the front head curtain airbag in the mount on the body -arrow B-.
-- Tighten the bolt -3-.
Pyrotechnical components can deploy unintentionally.
Risk of injury.
- Discharge the static electricity: quickly touch the door striker.

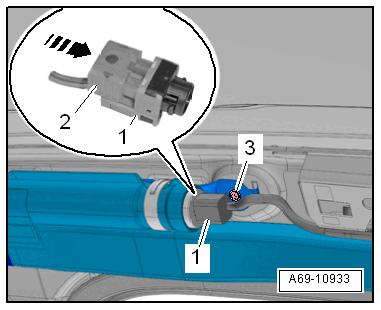

-- Connect the connector -1- on the head curtain airbag igniter.
-- Install the connector lock -2- -arrow-. While doing this, the connector is pushed into the head curtain airbag igniter and locks into place.
-- Clip the clips for the head curtain airbag until they click into place into the body.
Install in reverse order of removal. Note the following:
- Make sure the wires are not pinched.
- Make sure the "colored strip" is visible along the entire length. This will ensure that the head curtain airbag is NOT twisted.
-- If the battery was disconnected, perform the required steps after connecting the battery. Refer to BATTERY, DISCONNECTING AND CONNECTING .
Risk of airbag deployment.
Risk of injury.
- Switching on the ignition (key/button) after assembly may only be done when the driver seat is positioned all the way back.
- If the instrument cluster indicates a fault in the airbag system after assembly, the DTC memory must be checked, erased, and then checked again using the Vehicle Diagnostic Tester.
