Overview - Front Passenger Airbag

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

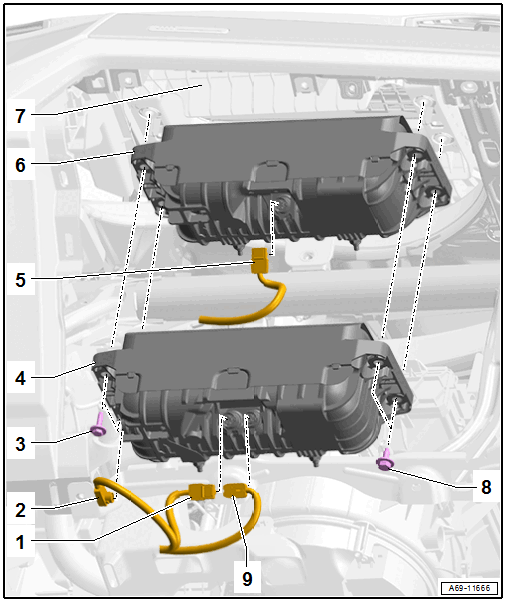

Fig 1: Exploded View Of Front Passenger Airbag

Courtesy of AUDI OF AMERICA, LLC

Connector
- North American market-specific
- For the Front Passenger Airbag Igniter 1 -N131-
Connector
- North American market-specific
- For the Front Passenger Airbag Igniter 2 -N132-
Bolt
- Quantity: 2
- Replace after removing
- 8 Nm
Front Passenger Airbag Unit -NX3-
- North American market-specific
- with
  - Front Passenger Airbag Igniter 1 -N131-
  - Front Passenger Airbag Igniter 2 -N132-
  - Front Passenger Airbag Release Valve Igniter -N491-
- Refer to FRONT PASSENGER AIRBAG UNIT WITH IGNITER, REMOVING AND INSTALLING
Connector
- Rest of World version
- For the Front Passenger Airbag Igniter 1 -N131-
Front Passenger Airbag
- Rest of World version
- With Front Passenger Airbag Igniter 1 -N131-
- Deactivating and activating possible using the key switch
- Refer to FRONT PASSENGER AIRBAG UNIT WITH IGNITER, REMOVING AND INSTALLING
Instrument Panel
- Replace the instrument panel after an airbag has deployed. Refer to INSTRUMENT PANEL, REMOVING AND INSTALLING .
Bolt
- Quantity: 2
- Replace after removing
- 8 Nm
Connector
- North American market-specific
- For the Front Passenger Airbag Release Valve Igniter -N491-
- Replace after the airbag has deployed. Refer to Wiring .
