Front Airbag Crash Sensor, Removing And Installing: Removing
-- Pay attention to the safety precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS .
Risk of airbag deployment.
Risk of injury.
- Check if the airbag indicator lamp turns on or blinks.
- If the airbag indicator lamp turns on or blinks, the DTC memory must be read.
- If >>short circuit to positive<< is a DTC memory entry, disconnect the battery. Refer to BATTERY, DISCONNECTING AND CONNECTING .
- If there is a DTC memory entry, the Guided Fault Finding instructions on the Vehicle Diagnostic Tester must always be followed.
- If the airbag indicator lamp does not turn on or blink, or there is no DTC memory entry with >>short circuit to positive<< : switch off the ignition, keep the ignition key outside of the vehicle and wait 10 seconds.
A3/S3 - Left Side of the Vehicle:

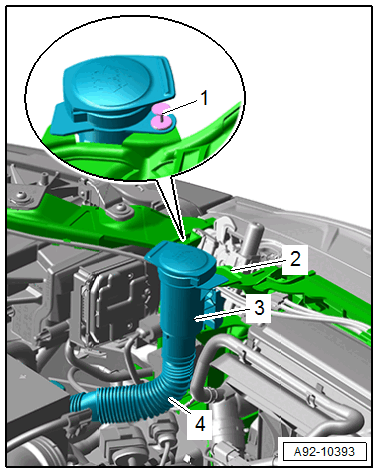

-- Remove the expanding clip -1- remove the filler neck -3- from the bracket on the lock carrier -2- and push to the side with the filler tube -4-.
Continuation for All Vehicles:

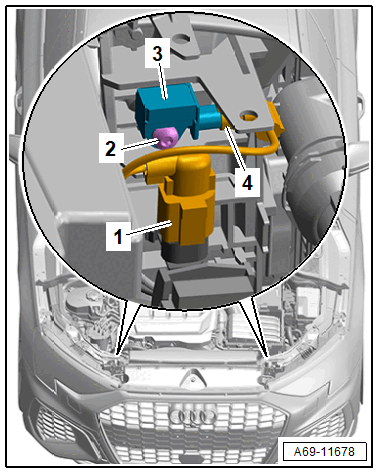

-- If necessary, disengage the connector -1- for the hood latch and lay aside.
Pyrotechnical components can deploy unintentionally.
Risk of injury.
- Discharge the static electricity: quickly touch the door striker.
-- Remove the bolt -2- and the front airbag crash sensor -3- from the lock carrier.
-- Disconnect the connector -4-.
-- To do this pull out the connector lock -2-, push down -arrow-, and disconnect the connector -1- on the crash sensor.
