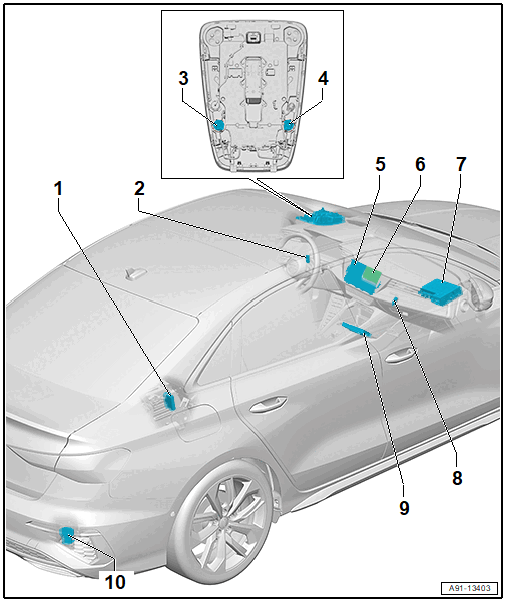

Component Location Overview - Telephone System, Sedan
WARNING: This page is about a different car, the 2022 Audi S3, 2022 Audi RS 3, 2022 Audi A3 Quattro, and 2022 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- Cellular Telephone Amplifier -R86-
- Behind the right luggage compartment side trim panel
- Removing and Installing. Refer to Cellular Telephone Amplifier -R86-, REMOVING AND INSTALLING, SEDAN .
- Vehicle Interior Communication Antenna -R364-
- Behind the instrument panel cover at the instrument panel crossmember
- Removing and Installing. Refer to Vehicle Interior Communication Antenna -R364-, REMOVING AND INSTALLING .
- Left Front Microphone -R140-
- Removing and Installing. Refer to Left Front Microphone -R140- /Right Front Microphone -R141-, REMOVING AND INSTALLING .
- Right Front Microphone -R141-
- Removing and Installing. Refer to Left Front Microphone -R140- /Right Front Microphone -R141-, REMOVING AND INSTALLING .
- Front Information Display Control Head -J685-
- Removing and Installing. Refer to INFOTAINMENT SYSTEM DISPLAY, REMOVING AND INSTALLING .
- Control Module for Emergency Call Module and Communication Unit -J949-
- Behind the display in the center instrument panel
- Removing and Installing. Refer to Control Module for Emergency Call Module and Communication Unit -J949-, REMOVING AND INSTALLING .
- Information Electronics Control Module 1 -J794-
- Behind the glove compartment
- Removing and Installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
- Vehicle Interior Communication Antenna 2 -R365-
- Behind the glove compartment at the center section of the instrument panel
- Removing and Installing. Refer to Vehicle Interior Communication Antenna 2 -R365-, REMOVING AND INSTALLING .
- Mobile Device Charger 1 -J1146-
- In the front center console storage compartment
- Removing and Installing. Refer to TELEPHONE BASEPLATE, REMOVING AND INSTALLING .
- LTE Antenna 3 -R330-
- Removing and Installing. Refer to LTE Antenna 3 -R330-, REMOVING AND INSTALLING .
