Cellular Telephone Amplifier -R86-, REMOVING AND INSTALLING, SPORTBACK: Removing
WARNING: This page is about a different car, the 2022 Audi S3, 2022 Audi RS 3, 2022 Audi A3 Quattro, and 2022 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Remove the right luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

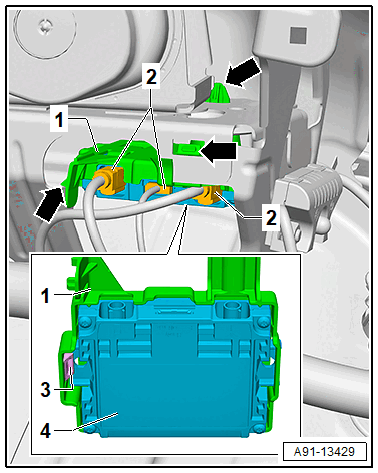

-- Release the retainers -arrows- from the bracket -1-.
-- Remove the bracket -1- with the Cellular Telephone Amplifier -R86- from the body from below.
-- Release and disconnect the connectors -2- from the Cellular Telephone Amplifier -R86-.
-- Release the retaining tab -3- on the bracket -1-.
-- Pivot out the Cellular Telephone Amplifier -R86- -4- from the bracket -1-.
