Subwoofer -R211-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2022 Audi S3, 2022 Audi RS 3, 2022 Audi A3 Quattro, and 2022 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Detach the left luggage compartment side trim panel in the rear area until the Subwoofer -R211- is accessible. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

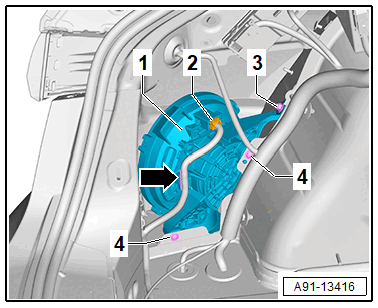

-- Release and disconnect the connector -2- from the Subwoofer -R211- -1-.
-- Remove the wiring harness from the Subwoofer -R211- -1- -arrow-.
-- Remove the nut -3-.
-- Remove the bolts -4-.
-- Pull the Subwoofer -R211- -1- upward out of the body seal and remove.
