Left Front Bass Speaker -R21- /Right Front Bass Speaker -R23-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2022 Audi S3, 2022 Audi RS 3, 2022 Audi A3 Quattro, and 2022 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Remove the front door trim panel. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .

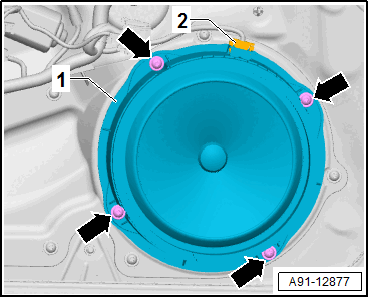

-- Release and disconnect the connector -2- from the Left Front Bass Speaker -R21- -1-.
-- Remove the bolts -arrows- (quantity 4) at the Left Front Bass Speaker - R21- -1-.
-- Remove the Left Front Bass Speaker -R21- -1- from the door.
