Front Midrange Speaker, Removing And Installing: Removing
WARNING: This page is about a different car, the 2022 Audi S3, 2022 Audi RS 3, 2022 Audi A3 Quattro, and 2022 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Remove the speaker mount. Refer to OVERVIEW - INSTRUMENT PANEL .

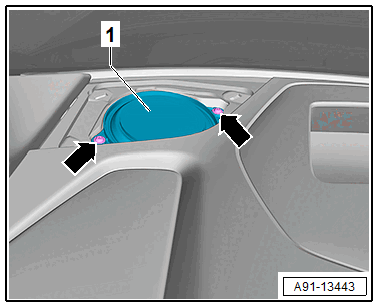

-- Remove the bolts -arrows-.
-- Remove the Left Front Midrange Speaker -R103- -1- upward until the connector is accessible.
-- Release and disconnect the connector from the Left Front Midrange Speaker -R103- -1-.
