Effects Speaker, Removing And Installing, Sedan: Removing
WARNING: This page is about a different car, the 2022 Audi S3, 2022 Audi RS 3, 2022 Audi A3 Quattro, and 2022 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Remove the speaker trim -1- from the rear shelf using the Trim Removal Wedge: 3409 .
-- Lift the speaker trim -1- until the connector on the Left Effects Speaker -R209- is accessible.

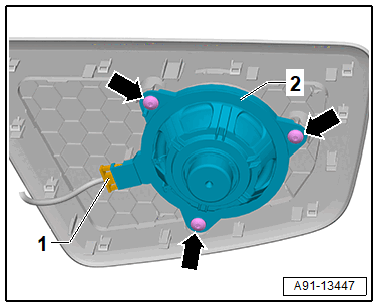

-- Release and disconnect the connector -1- from the Left Effects Speaker -R209- -2-.
-- Remove the speaker trim with the Left Effects Speaker -R209- -2-.
-- Remove the bolts -arrows- from the Left Effects Speaker -R209- -2-.
-- Remove the Left Effects Speaker -R209- -2- from the speaker trim.
