Effects Speaker, Removing And Installing, SPORTBACK: Removing
WARNING: This page is about a different car, the 2022 Audi S3, 2022 Audi RS 3, 2022 Audi A3 Quattro, and 2022 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Remove the D-pillar trim panel. Refer to D-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

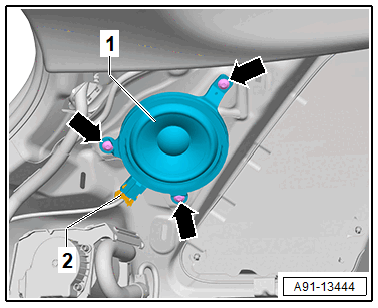

-- Remove the bolts -arrows-.
-- Remove the Left Effects Speaker -R209- -1- from the D-pillar.
-- Release and disconnect the connector -2- from the Left Effects Speaker -R209- -1-.
