Component Location Overview - Sound System, Sedan

WARNING: This page is about a different car, the 2022 Audi S3, 2022 Audi RS 3, 2022 Audi A3 Quattro, and 2022 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI OF AMERICA, LLC

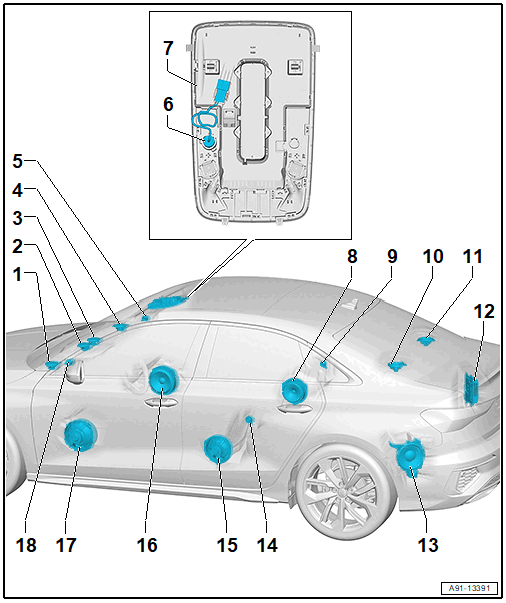

Left Front Midrange Speaker -R103-
- Only for 9VS
- Removing and Installing. Refer to FRONT MIDRANGE SPEAKER, REMOVING AND INSTALLING .
- Bolt tightening specification: 1.5 Nm
Center Speaker 2 -R219-
- Only for 9VS
- Removing and Installing. Refer to Center Speaker 2 -R219-, REMOVING AND INSTALLING .
- Bolt tightening specification: 1.5 Nm
Center Speaker -R208-
- Only for 9VD/9VS
- Removing and Installing. Refer to Center Speaker -R208-, REMOVING AND INSTALLING .
- Bolt tightening specification: 1.5 Nm
Right Front Midrange Speaker -R104-
- Only for 9VS
- Removing and Installing. Refer to FRONT MIDRANGE SPEAKER, REMOVING AND INSTALLING .
- Bolt tightening specification: 1.5 Nm
Right Front Treble Speaker -R22-
- Removing and Installing. Refer to Left Front Treble Speaker -R20- /Right Front Treble Speaker -R22-, REMOVING AND INSTALLING .
Interior Microphone -R74-
- Only for 9VS
- In the Front Roof Module -WX3-
- Overview. Refer to OVERVIEW - MICROPHONE UNIT .
- Removing and Installing. Refer to Interior Microphone -R74-, REMOVING AND INSTALLING .
Front Roof Module -WX3-
- Removing and installing. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
Right Rear Bass Speaker -R17-
- Removing and Installing. Refer to Left Rear Bass Speaker -R15- /Right Rear Bass Speaker -R17-, REMOVING AND INSTALLING .
- Bolt tightening specification: 4 Nm
Right Rear Treble Speaker -R16-
- Only for 9VD/9VS
- Removing and Installing. Refer to Left Rear Treble Speaker -R14- /Right Rear Treble Speaker -R16-, REMOVING AND INSTALLING .
Left Effects Speaker -R209-
- Only for 9VS
- Removing and Installing. Refer to EFFECTS SPEAKER, REMOVING AND INSTALLING .
- Bolt tightening specification: 1.5 Nm
Right Effects Speaker -R210-
- Only for 9VS
- Removing and Installing. Refer to EFFECTS SPEAKER, REMOVING AND INSTALLING .
- Bolt tightening specification: 1.5 Nm
Digital Sound System Control Module -J525-
- Only for 9VS
- Removing and Installing. Refer to CONTROL MODULE/DIGITAL SOUND SYSTEM AMPLIFIER, REMOVING AND INSTALLING, SEDAN .
Subwoofer -R211-
- Only for 9VD/9VS
- Removing and Installing. Refer to Subwoofer -R211-, REMOVING AND INSTALLING .
- Bolt tightening specification: 4.5 Nm
- Nut tightening specification: 6 Nm
Left Rear Treble Speaker -R14-
- Only for 9VD/9VS
- Removing and Installing. Refer to Left Rear Treble Speaker -R14- /Right Rear Treble Speaker -R16-, REMOVING AND INSTALLING .
Left Rear Bass Speaker -R15-
- Removing and Installing. Refer to Left Rear Bass Speaker -R15- /Right Rear Bass Speaker -R17-, REMOVING AND INSTALLING .
- Bolt tightening specification: 4 Nm
Right Front Bass Speaker -R23-
- Removing and Installing. Refer to Left Front Bass Speaker -R21- /Right Front Bass Speaker -R23-, REMOVING AND INSTALLING .
- Bolt tightening specification: 4 Nm
Left Front Bass Speaker -R21-
- Removing and Installing. Refer to Left Front Bass Speaker -R21- /Right Front Bass Speaker -R23-, REMOVING AND INSTALLING .
- Bolt tightening specification: 4 Nm
Left Front Treble Speaker -R20-
- Removing and Installing. Refer to Left Front Treble Speaker -R20- /Right Front Treble Speaker -R22-, REMOVING AND INSTALLING .
