Overview - Mobile Online Services

WARNING: This page is about a different car, the 2022 Audi S3, 2022 Audi RS 3, 2022 Audi A3 Quattro, and 2022 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

The mobile online services are based on the eCall and bCall and the Control Module for Emergency Call Module and Communication Unit -J949-.

The Control Module for Emergency Call Module and Communication Unit -J949- is safeguarded against a crash by being installed in the center instrument panel. The Control Module for Emergency Call Module and Communication Unit -J949- contains an emergency call module and a compass module. A separate SIM card is installed for the emergency call function.

Courtesy of AUDI OF AMERICA, LLC

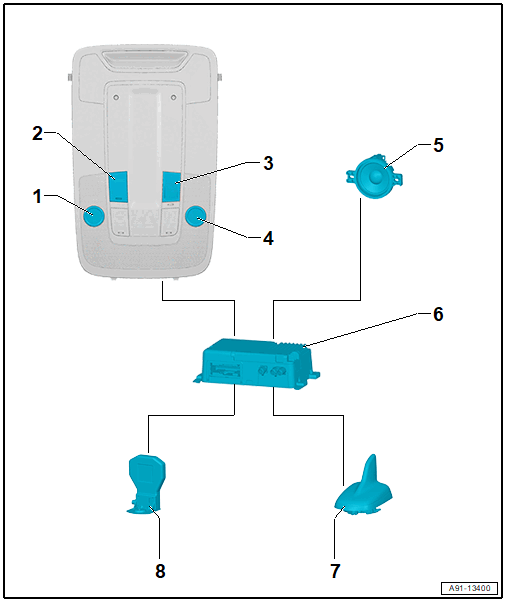

Right Front Microphone -R141- in the Front Roof Module -WX3-
Roadside Assistance Button -E275- in the Front Roof Module -WX3-
Emergency Call Button -E276- in the Front Roof Module -WX3-
Left Front Microphone -R140- in the Front Roof Module -WX3-
Emergency Call Module Speaker -R335- on the Heater and A/C Unit
The Control Module for Emergency Call Module and Communication Unit - J949- is Located Behind the Center Instrument Panel Display
GPS Antenna -R50- and Emergency Call Module Antenna -R263- in the Roof Antenna -R216-
Emergency Call Module Antenna 2 -R322- Under the Rear Bumper Cover on the Left Side

Troubleshooting

The mobile online services system is capable of OBD.

Fault Finding is performed using the "Guided Fault Finding" on the Vehicle Diagnostic Tester.

When there are concerns about the function, it necessary to be familiar with the Mobile Online Services functions.

For additional information. Refer to the Owner's Manual and the appropriate Wiring Diagram.
