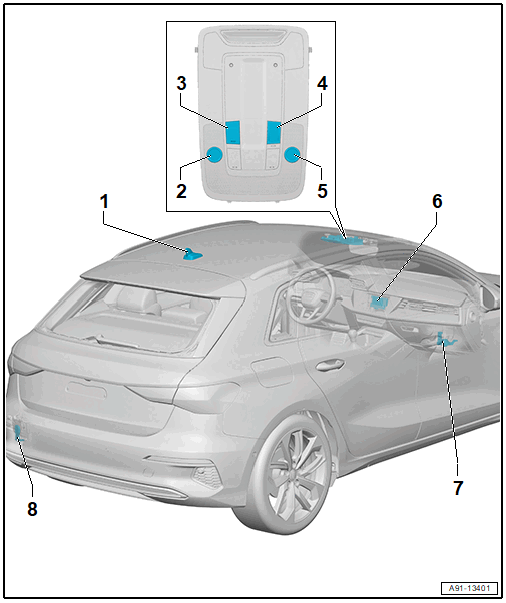

Component Location Overview - Mobile Online Services
WARNING: This page is about a different car, the 2022 Audi S3, 2022 Audi RS 3, 2022 Audi A3 Quattro, and 2022 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- GPS Antenna -R50- and Emergency Call Module Antenna -R263-
- In the Roof Antenna -R216-
- Removing and Installing. Refer to ROOF ANTENNA, REMOVING AND INSTALLING .
- Right Front Microphone -R141-
- In the Front Roof Module -WX3-
- Removing and Installing. Refer to Left Front Microphone -R140- /Right Front Microphone -R141-, REMOVING AND INSTALLING .
- Roadside Assistance Button -E275-
- In the Front Roof Module -WX3-
- Removing and installing. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
- Emergency Call Button -E276-
- In the Front Roof Module -WX3-
- Removing and installing. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
- Left Front Microphone -R140-
- In the Front Roof Module -WX3-
- Removing and Installing. Refer to Left Front Microphone -R140- /Right Front Microphone -R141-, REMOVING AND INSTALLING .
- Control Module for Emergency Call Module and Communication Unit -J949-
- Removing and Installing. Refer to Control Module for Emergency Call Module and Communication Unit -J949-, REMOVING AND INSTALLING .
- Telematics Emergency Battery -A16-, Removing and Installing. Refer to Telematics Emergency Battery -A16-, REMOVING AND INSTALLING .
- Bracket tightening specification: 3 Nm
- Emergency Call Module Speaker -R335-
- Removing and Installing. Refer to Emergency Call Module Speaker -R335-, REMOVING AND INSTALLING .
- Bolt tightening specification: 4.5 Nm
- Emergency Call Module Antenna 2 -R322-
- Removing and Installing. Refer to Emergency Call Module Antenna -R263- /Emergency Call Module Antenna 2 -R322-, REMOVING AND INSTALLING .
