Steering Wheel Touch Recognition Control Module -J1158-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2022 Audi S3, 2022 Audi RS 3, 2022 Audi A3 Quattro, and 2022 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Remove the driver airbag. Refer to AIRBAG UNIT WITH IGNITER, REMOVING AND INSTALLING .
-- Draw sketches or take pictures of the wire routing in the steering wheel. This will ensure the original wire routing when installing.

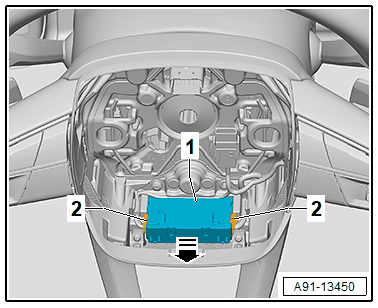

-- Remove the Steering Wheel Touch Recognition Control Module -J1158- -1- out of the retainer in the steering wheel in the direction of -arrow-, at the same time pay attention to the wires.
-- Release and disconnect the connectors -2-.
