Infotainment System Display, Removing And Installing: Removing
WARNING: This page is about a different car, the 2022 Audi S3, 2022 Audi RS 3, 2022 Audi A3 Quattro, and 2022 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Remove the center instrument panel decorative trim and upper front passenger side instrument panel decorative trim. Refer to INSTRUMENT PANEL DECORATIVE TRIM, REMOVING AND INSTALLING .

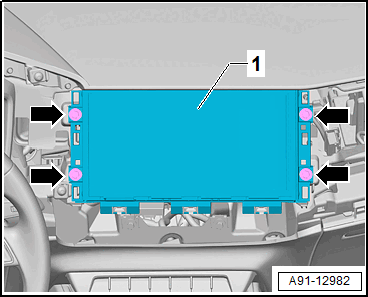

-- Remove the screws -arrows- and remove the Front Information Display Control Head -J685- -1- from the instrument panel.
-- Release and disconnect the connector.
