Driver Volume Control -E67-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2022 Audi S3, 2022 Audi RS 3, 2022 Audi A3 Quattro, and 2022 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Remove the center console insert. Refer to CENTER CONSOLE INSERT, REMOVING AND INSTALLING .

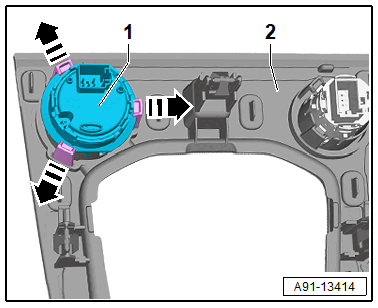

-- Release the retaining tabs -2- in the direction of -arrows-.
-- Pull out the Driver Volume Control -E67- -1- from the center console insert -2-.
