Near Field Communication Control Module 2 -J1170-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2022 Audi S3, 2022 Audi RS 3, 2022 Audi A3 Quattro, and 2022 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment and remove the ignition key.
-- Remove the front center console storage compartment. Refer to FRONT CENTER CONSOLE STORAGE COMPARTMENT, REMOVING AND INSTALLING .

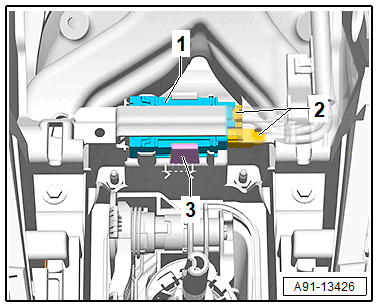

-- Release the retaining tab -3- at the center console securing bracket.
-- Pivot out the Near Field Communication Control Module 2 -J1170- -1- rearward out of the center console securing bracket.
-- Release and disconnect the connectors -2-.
