Near Field Communication Antenna 2 -R351-, REMOVING AND INSTALLING, VEHICLES WITHOUT AUDI PHONE BOX/AUDI PHONE BOX LIGHT (9ZX): Removing

WARNING: This page is about a different car, the 2022 Audi S3, 2022 Audi RS 3, 2022 Audi A3 Quattro, and 2022 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.

-- Turn the front section at the Removal Tool for Coupling - Aerial: T40388 by 90°.

The rubber lip on the surface on which the Removal Tool for Coupling - Aerial: T40388 was inserted must be slightly pressed out -arrow-.

Courtesy of AUDI OF AMERICA, LLC

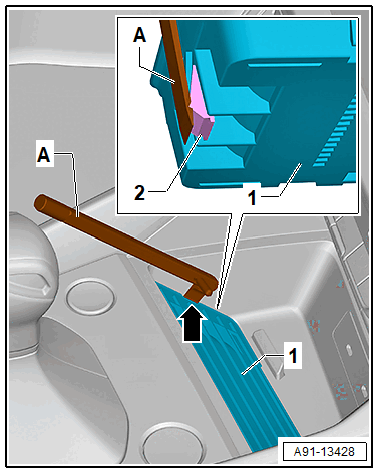

-- Using the Removal Tool for Coupling - Aerial: T40388 -A-, carefully push the rubber lip on the Near Field Communication Antenna 2 -R351- to the side -arrow- and guide in the Removal Tool for Coupling - Aerial: T40388 vertically from above as shown.

-- The catch -2- is released and engages in the groove on the Removal Tool for Coupling - Aerial: T40388 -A-.

-- Pull the Removal Tool for Coupling - Aerial: T40388 -A- back out vertically upward and remove the Near Field Communication Antenna 2 -R351- -1- from the storage compartment.

-- Tilt the Near Field Communication Antenna 2 -R351- -1- out of the storage compartment.

-- Release and disconnect the connectors from the Near Field Communication Antenna 2 -R351-.
