TV Antenna Amplifier 3 -R84-, REMOVING AND INSTALLING, SPORTBACK: Removing
WARNING: This page is about a different car, the 2022 Audi S3, 2022 Audi RS 3, 2022 Audi A3 Quattro, and 2022 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Remove the rear lid upper trim panel. Refer to REAR LID UPPER TRIM PANEL, REMOVING AND INSTALLING .

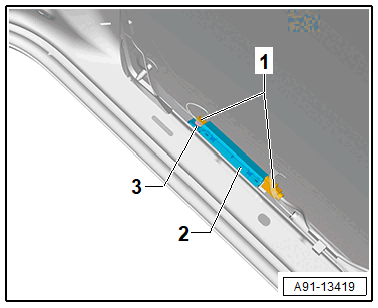

-- Release and disconnect the connectors -1- at the Antenna Amplifier -2-.
-- Loosen the screw -3- several turns and remove the antenna amplifier -2- from the rear lid.
