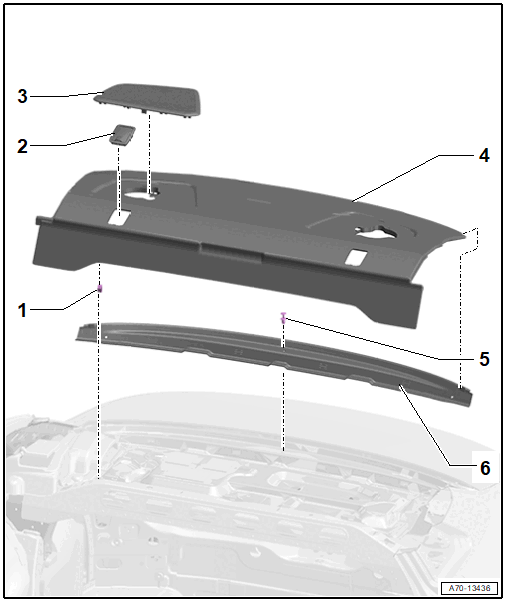

Overview - Rear Shelf
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- Clip
- Quantity: 4
- insert in the rear shelf
- Remove the clips that are still in the body mounting points using the Omega Clip Tool:T40280 .
- Replace damaged or deformed clips
- Child Seat Anchor Cap
- Depending on vehicle equipment quantity of 2 or 3
- Insert in the rear shelf and press on it until it clicks into place
- Speaker Trim
- Equipped on some models
- Quantity: 2
- Refer to SPEAKER TRIM, REMOVING AND INSTALLING
- Insert in the rear shelf and press on it until it clicks into place
- Rear Shelf
- Refer to REAR SHELF, REMOVING AND INSTALLING
- Insert the rear shelf in the rear window frame and press on the shelf until it clicks into place
- Expanding Rivet
- Quantity: 3
- Removing with Pliers:T40172C
- Rear Window Frame Trim Panel
- Refer to REAR SHELF, REMOVING AND INSTALLING
