Overview - Footrest And Carpet

Fig 1: Exploded View Of Footrest And Carpet

Courtesy of AUDI OF AMERICA, LLC

1. Rear Floor Mat
   • Quantity: 2
2. Carpet
   • One piece
   • Equipped on some models
   • Refer to CARPET, REMOVING AND INSTALLING
3. Button
   • Quantity: 2
   • Press on until stop
4. Nut
   • Quantity: 3
   • 2 Nm
5. Footrest Bracket
   • Refer to FOOTREST, REMOVING AND INSTALLING
6. Footrest
   • For RHD vehicles, refer to Fig 2.
   • Refer to FOOTREST, REMOVING AND INSTALLING
   • Must engage completely in the bracket
7. Front Floor Mat
   • Quantity: 2
8. Floor Mat Bracket Cap
   • Quantity: 2
   • Unclip using the Pry Lever:80-200
   • Press into the bracket until it clicks into place
9. Floor Mat Bracket
   • Quantity: 2
   • Insert from below into the floor mat
10. Floor Mat Bracket Cap
    • Quantity: 2
    • Unclip using the Pry Lever:80-200
    • Press into the bracket until it clicks into place
11. Floor Mat Bracket
    • Quantity: 2
    • Insert from below into the carpet

Overview - Footrest, RHD

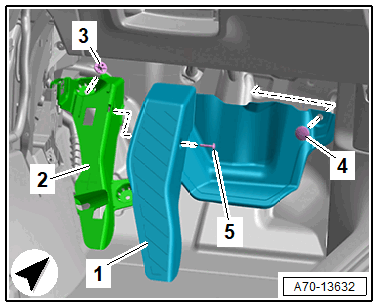

Fig 2: Exploded View Of Footrest, RHD

Courtesy of AUDI OF AMERICA, LLC

1. Footrest
2. Footrest Bracket
3. Nut, 2 Nm
4. Button
5. Screw, 2 Nm
