Overview - D-Pillar Trim Panel, Sedan
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

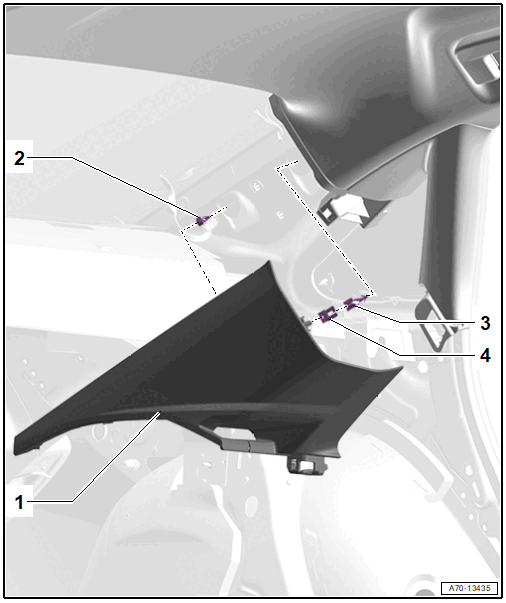

- D-Pillar Trim Panel
- Clip
- Insert in the trim panel
- Remove the clips that are still in the body mounting points using the Omega Clip Tool:T40280 .
- Replace damaged or deformed clips
- Clamp with Hooks
- Replace after removal of the D-pillar trim panel
- Insert into the trim panel with the U-clamp
- U-Clamp
- Insert in the trim panel
- Replace damaged or deformed clips
