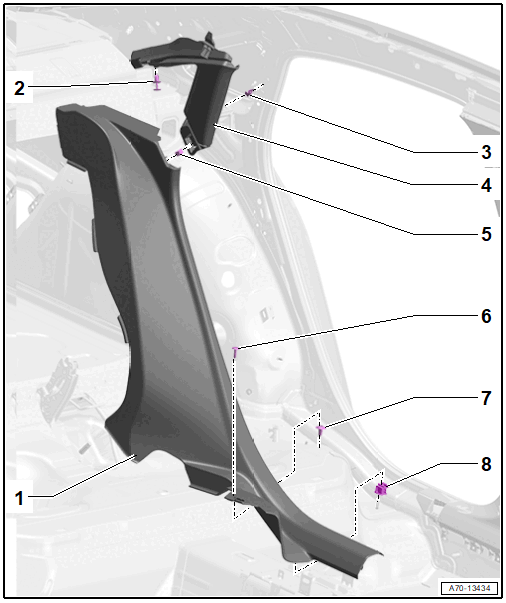

Overview - C-Pillar Trim Panel, Sedan
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- C-Pillar Lower Trim Panel
- Expanding Rivet
- Removing with Pliers:T40172C
- Press on until stop
- Clip
- Insert in the trim panel
- Remove the clips that are still in the body mounting points using the Omega Clip Tool:T40280 .
- Replace damaged or deformed clips
- C-Pillar Upper Trim Panel
- Refer to UPPER C-PILLAR-TRIM PANEL, REMOVING AND INSTALLING, SEDAN
- Insert in the mounting point on the roof at the top
- Clip
- Quantity: 4
- Insert in the trim panel
- Remove the clips that are still in the body mounting points using the Omega Clip Tool:T40280 .
- Replace damaged or deformed clips
- Clip
- Press on until stop
- Sleeve
- Insert in the body
- Clip
- Insert in the sill panel
