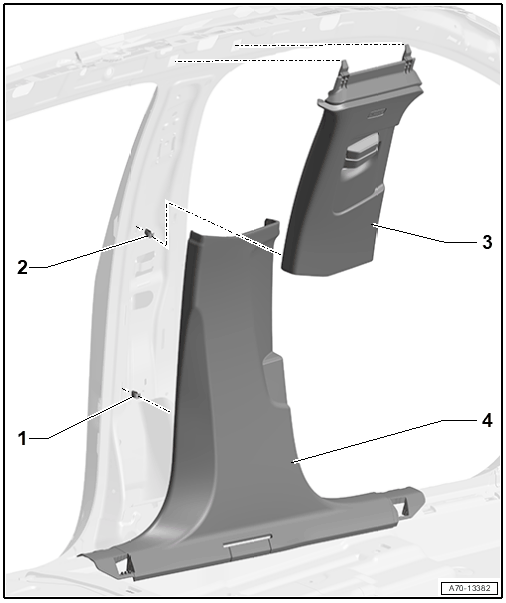

Overview - B-Pillar Trim Panel
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- Clip
- Quantity: 3
- Insert in the trim panel
- Remove the clips that are still in the body mounting points using the Omega Clip Tool:T40280 .
- Replace damaged or deformed clips
- Clip
- Quantity: 2
- Insert in the trim panel
- Remove the clips that are still in the body mounting points using the Omega Clip Tool:T40280 .
- Replace damaged or deformed clips
- B-Pillar Upper Trim Panel
- Refer to B-PILLAR UPPER TRIM PANEL, REMOVING AND INSTALLING
- Insert in the mounting points on the roof at the top
- Stretch the door seal lip over.
- B-Pillar Lower Trim Panel
- Refer to B-PILLAR LOWER TRIM PANEL, REMOVING AND INSTALLING
- Stretch the door seal lip over.
