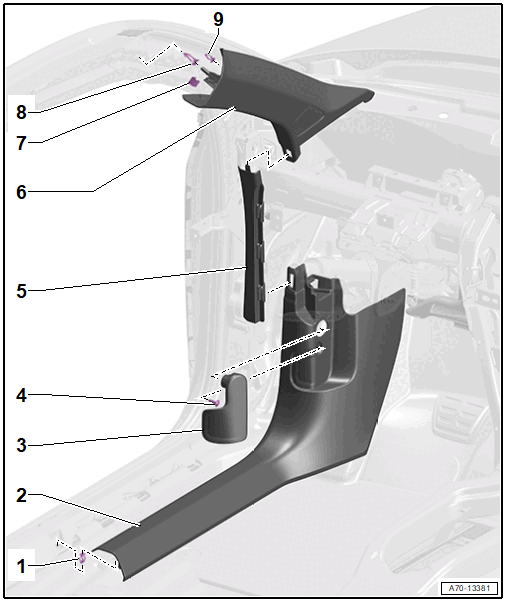

Overview - A-Pillar Trim Panel
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- Clip
- Quantity: 2
- Insert in the trim panel
- Remove the clips that are still in the body mounting points using the Omega Clip Tool:T40280 .
- Replace damaged or deformed clips
- A-Pillar Lower Trim Panel
- For RHD vehicles, refer to Fig 2.
- Refer to A-PILLAR LOWER TRIM PANEL, REMOVING AND INSTALLING
- Pushed forward in the carpet
- Stretch the inner door seal lip over.
- Operating Lever for Hood Latch
- Only driver side
- Removing and installing. Refer to HOOD LATCH OPERATING LEVER, REMOVING AND INSTALLING . .
- Bolt
- Only driver side
- 1.7 Nm
- A-Pillar Gap Cover
- Refer to A-PILLAR TRIM PANEL, REMOVING AND INSTALLING
- Clip into the A-pillar trim panels
- Stretch the inner door seal lip over.
- A-Pillar Upper Trim Panel
- Refer to A-PILLAR UPPER TRIM PANEL, REMOVING AND INSTALLING
- Stretch the inner door seal lip over.
- Clip
- Insert in the trim panel
- Replace damaged or deformed clips
- Clamp with Hooks
- Replace after removing the A-pillar trim panel
- Insert in the trim panel
- Clip
- Insert in the trim panel
- Remove the clips that are still in the body mounting points using the Omega Clip Tool:T40280 .
- Replace damaged or deformed clips

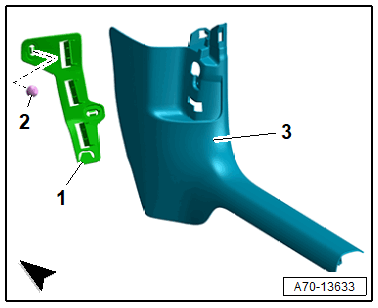

Overview - A-Pillar Lower Trim Panel, RHD
- A-Pillar Lower Trim Panel Bracket
- Button
- A-Pillar Trim Panel
