Treble Speaker Trim, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

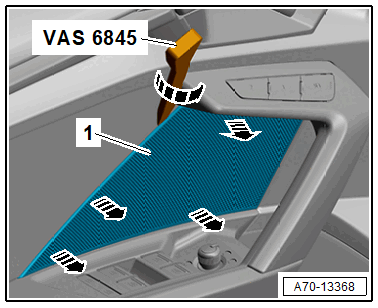

-- Starting at the top, unclip the trim -1- from the door trim panel -arrows- using a wedge from the Scraper Set:VAS 6845 .
-- To do that, push the scraper from Scraper Set:VAS 6845 flat under the trim and turn it on its axle, until the hook disengages.
-- Unclip the remaining tabs from the door trim panel and remove the speaker trim toward the rear.
