Rear Armrest, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the door trim panel. Refer to REAR DOOR TRIM PANEL, REMOVING AND INSTALLING .
-- Place the door trim panel on a soft and clean surface.

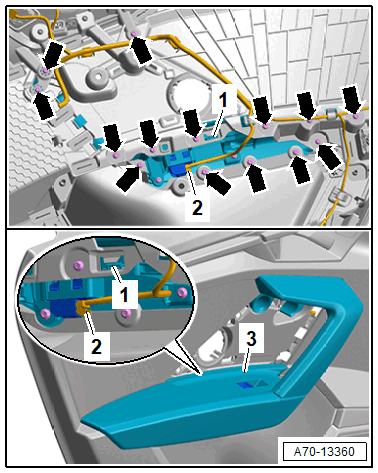

-- Remove the bolts -arrows- on the back of the door trim panel.
-- Disconnect the connector -2-.
-- Loosen the pull handle -3- with the armrest from the door trim panel and then remove, to do that, release the retainer at the back of the door trim panel -1-.

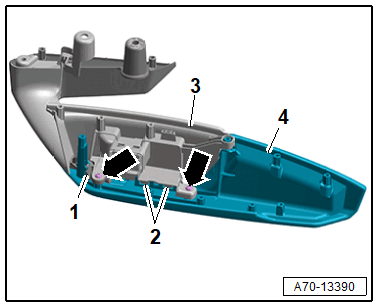

-- Remove the bolts -arrows-.
-- Release the retainers -1 and 2- using a flat-head screwdriver.
-- Loosen the armrest -4- from the pull handle -3- and remove.
