Rear Luggage Compartment Floor Handle, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the luggage compartment floor.

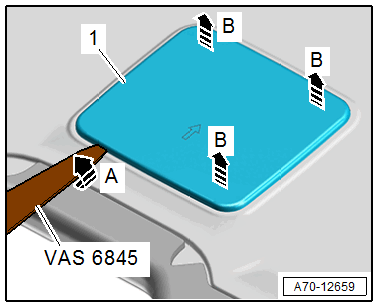

-- Unclip the handle cover -1- on the bottom of the luggage compartment floor.
-- Do this by inserting the scraper from the Scraper Set:VAS 6845 flat under the handle cover.
TIP:
If the scraper is inserted from above, it will be located under the frame. It is then not possible to pry out the cover.
-- Turn the scraper on its axle -arrow A- until the hook disengages.
-- Disengage the remaining frame -B arrows- and the cover for the handle.

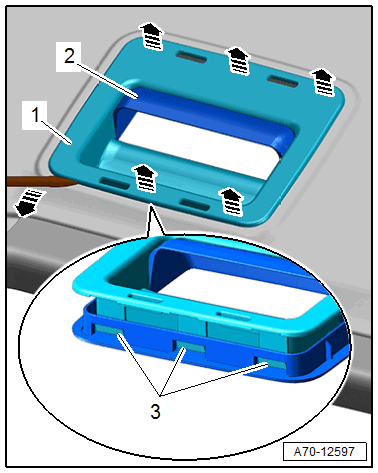

-- Carefully release the catches -3- one after the other with a small flat-head screwdriver -arrows-.
-- Disengage the remaining catches and remove the frame -1- for the handle.
-- Remove the handle -2- for the luggage compartment floor.
