Overview - Luggage Compartment Side Trim Panel, Sedan

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

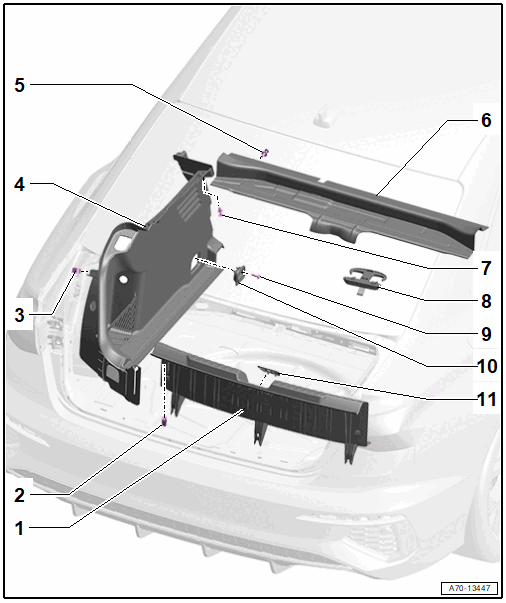

Fig 1: Exploded View Of Luggage Compartment Side Trim Panel, Sedan
GWWA70-13447Courtesy of AUDI OF AMERICA, LLC
  1. Lock Carrier Trim Panel
  2. Clip
    • Quantity: 4
    • Insert in the trim panel
    • Remove any remaining clips from the mounting points using the Omega Clip Tool:T40280  .
    • Replace damaged or deformed clips
  3. Clip
    • Quantity: 2
    • Insert in the trim panel
    • Remove any remaining clips from the mounting points using the Omega Clip Tool:T40280  .
    • Replace damaged or deformed clips
  4. Luggage Compartment Side Trim Panel
  5. Expanding Clip
    • Quantity: 4
    • Removing with Pliers:T40172C
  6. Crossmember Cover
  7. Expanding Clip
    • Quantity: 2
    • Removing with Pliers:T40172C
  8. Bag Hooks
  9. Bolt
    • 8 Nm
  10. Tie Down
  11. Locking Pin Cover
    • Clip into the trim panel
