Luggage Compartment Support, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Move the front seats all the way forward.
-- Fold the rear seat backrest forward.
-- Remove the luggage compartment floor.
-- Equipped on some models: remove the storage compartment for the vehicle tool kit. Refer to VEHICLE TOOL KIT STORAGE COMPARTMENT, REMOVING AND INSTALLING .

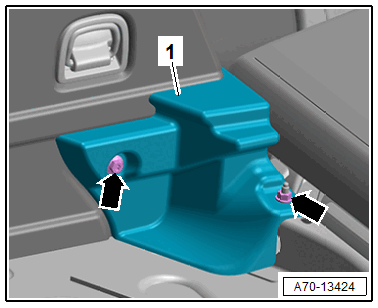

-- Remove the bolt and nut -arrows-.
-- Disengage and remove the luggage compartment floor carrier -1-.
