Luggage Compartment Side Trim Panel, Removing And Installing, Sedan: Removing

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the luggage compartment floor.

-- Remove the tie-downs. Refer to TIE DOWN, REMOVING AND INSTALLING .

-- Remove the lock carrier trim panel. Refer to LOCK CARRIER TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the expanding clips -2- using the Pliers:T40172C .

Courtesy of AUDI OF AMERICA, LLC

-- Free up the luggage compartment side trim panel -3- in the area of the rear lid seal -1-.

-- Unclip the luggage compartment side trim panel from the body -arrows-.

-- Pull the luggage compartment side trim panel slightly inward.

-- Disengage the luggage compartment side trim panel from the rear lid hinge.

-- Disconnect the connectors, if equipped.

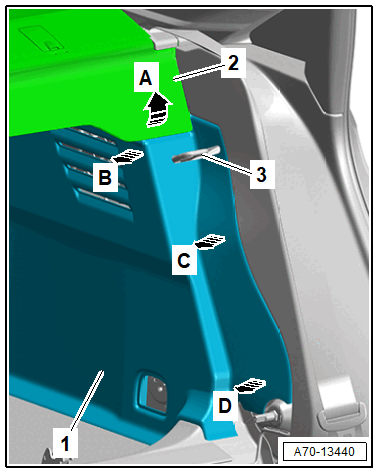

-- Slightly lift up the rear shelf -2- on the front -arrow A- and then remove the luggage compartment side trim panel -1- inward -arrow B-.

Courtesy of AUDI OF AMERICA, LLC

-- Disengage the luggage compartment side trim panel -3- from the folding backrest catch.

-- Equipment version: Remove the luggage compartment side trim panel from the C-pillar lower trim panel -arrows C and D- and push to the side.

-- Disengage and remove the bottom of the luggage compartment side trim panel at the mounting pin for the folding backrest.
