Lock Carrier Trim Panel, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

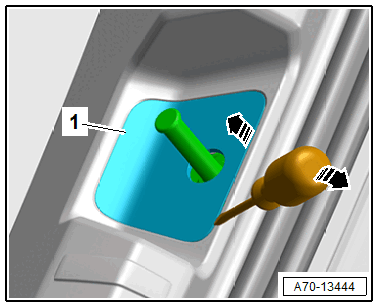

GWWA70-13444Courtesy of AUDI OF AMERICA, LLC

-- Sedan: unclip and remove the cover -1- for the locking pin using a small flat-head screwdriver -arrows-.

-- Remove the luggage compartment floor.

-- Free up the lock carrier trim panel near the rear lid seal -1-.

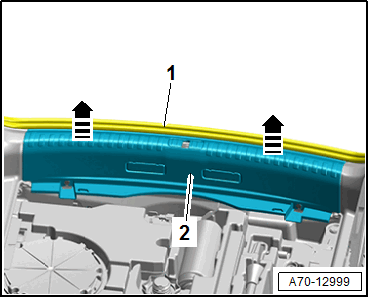

GWWA70-12999Courtesy of AUDI OF AMERICA, LLC

-- Grip the trim panel -2- by hand and carefully pull vertically upward using a jerking motion -arrows-.
