Outer Instrument Panel Vent, Removing And Installing, Front Passenger Side: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the instrument panel decorative trim on the front passenger side. Refer to INSTRUMENT PANEL DECORATIVE TRIM, REMOVING AND INSTALLING, FRONT PASSENGER SIDE .
-- Remove the right display control head decorative panel. Refer to DISPLAY CONTROL HEAD DECORATIVE TRIM, REMOVING AND INSTALLING .

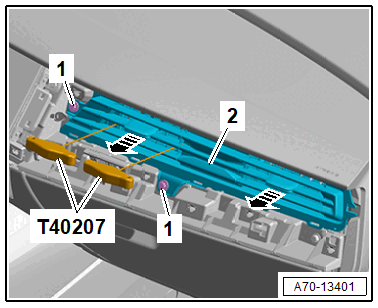

-- Remove the bolts -1-.
TIP:
The vent has holes on the sides for attaching the Hook Tool:T40207 .
-- Carefully guide both Hook Tool:T40207 in between the slats and push forward until they can be engaged on the side of the housing of the instrument panel vent.
-- Carefully remove the vents -2- on both sides in stages, alternating from side to side -arrows-.
