Light Switch Trim, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Move the steering wheel as far to the rear and down as possible. Use the full steering column adjustment range for this.
-- Remove the driver side outer instrument panel vent. Refer to OUTER INSTRUMENT PANEL VENT, REMOVING AND INSTALLING, DRIVER SIDE .
-- Removing the decorative trim for the driver side instrument panel. Refer to INSTRUMENT PANEL DECORATIVE TRIM, REMOVING AND INSTALLING, DRIVER SIDE .

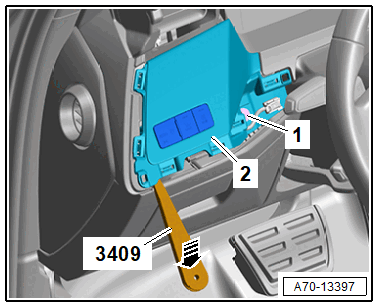

-- Remove the bolt -1-.
-- Unclip the light switch trim -2- using the Trim Removal Wedge:3409 -arrow-.
-- Disconnect the remaining tabs, remove the decorative trim and disconnect the connector.
