Instrument Cluster Trim, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

-- Move the steering wheel as far to the rear and down as possible. Use the full steering column adjustment range for this.

-- Remove the instrument panel decorative trim on the front passenger side. Refer to INSTRUMENT PANEL DECORATIVE TRIM, REMOVING AND INSTALLING, FRONT PASSENGER SIDE .

-- Remove the center vent. Refer to CENTER VENT, REMOVING AND INSTALLING .

-- Remove the left display control head decorative panel. Refer to DISPLAY CONTROL HEAD DECORATIVE TRIM, REMOVING AND INSTALLING .

-- Remove the driver side outer instrument panel vent. Refer to OUTER INSTRUMENT PANEL VENT, REMOVING AND INSTALLING, DRIVER SIDE .

-- Removing the decorative trim for the driver side instrument panel. Refer to INSTRUMENT PANEL DECORATIVE TRIM, REMOVING AND INSTALLING, DRIVER SIDE .

-- Remove the light switch trim. Refer to LIGHT SWITCH TRIM, REMOVING AND INSTALLING .

-- Unclip the steering column trim panel gap cover -1- by hand from the instrument cluster trim -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Carefully insert the Backrest Panel Tool:3370 in between the trim and the instrument panel, then engage it to the trim.

Courtesy of AUDI OF AMERICA, LLC

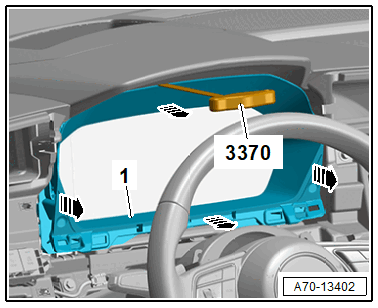

-- Unclip the instrument cluster trim -1- using the Backrest Panel Tool:3370 from the instrument cluster -arrows- and then remove.
