Display Control Head Carrier, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

-- Move the steering wheel as far to the rear and down as possible. Use the full steering column adjustment range for this.

-- Remove the center vent. Refer to CENTER VENT, REMOVING AND INSTALLING .

-- Remove the instrument panel decorative trim on the front passenger side. Refer to INSTRUMENT PANEL DECORATIVE TRIM, REMOVING AND INSTALLING, FRONT PASSENGER SIDE .

-- Remove the display control head decorative panels. Refer to DISPLAY CONTROL HEAD DECORATIVE TRIM, REMOVING AND INSTALLING .

-- Remove the Front Information Display Control Head -J685-. Refer to COMPONENT LOCATION OVERVIEW - INFOTAINMENT SYSTEM .

-- Remove the outer front passenger side instrument panel vent. Refer to OUTER INSTRUMENT PANEL VENT, REMOVING AND INSTALLING, FRONT PASSENGER SIDE .

-- Remove the center instrument panel cover. Refer to CENTER INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .

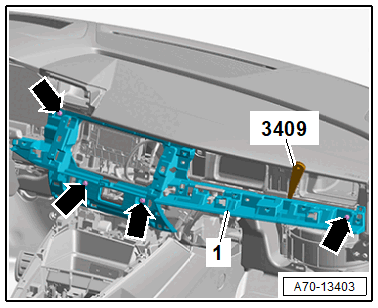

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Unclip the carrier -1- with the Trim Removal Wedge:3409 from the instrument panel and remove.
