Overview - Instrument Panel CROSSMEMBER

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

The overview shows a LHD vehicle as an example. For RHD vehicles the layout is a mirror image.

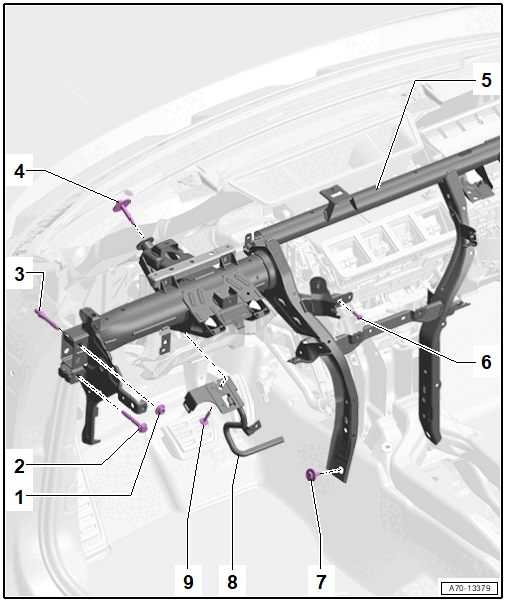

Fig 1: Exploded View Of Instrument Panel Crossmember

Courtesy of AUDI OF AMERICA, LLC

Nut
- Replace after removing
- Tightening specification and sequence. Refer to Fig 2.
Bolt
- Only driver side
- The mounting threads and contact surface must be free of paint, coating and corrosion. The threaded connection serves as the ground connection.
- Tightening specification and sequence. Refer to Fig 2.
Threaded Pin
- 20 Nm
Bolt
- Tightening specification and sequence. Refer to Fig 2.
Crossmember
- Refer to INSTRUMENT PANEL CROSSMEMBER, REMOVING AND INSTALLING
Heater and A/C Unit Bolt
- Quantity: 3
- 4 Nm
Bolt
- Quantity: 2
- Tightening specification and sequence. Refer to Fig 2.
Crash Bolster
- Refer to CRASH BOLSTER, REMOVING AND INSTALLING
Bolt
- 20 Nm

Instrument panel crossmember to body - tightening specifications and sequence

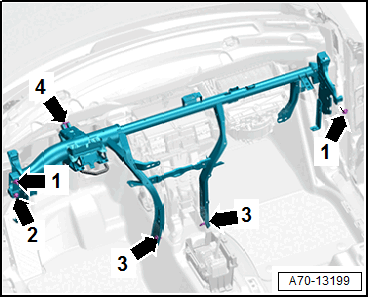

Fig 2: Instrument Panel Crossmember to Body - Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the nuts and bolts in sequence -arrows 1 to 4- to 20 Nm.

Tightening specification - ground connection on the heater and A/C unit

Fig 3: Ground Connection on the A/C unit

Courtesy of AUDI OF AMERICA, LLC

-- Tightening specification - nut -arrow-. Refer to Wiring Diagram.

Tightening specification - ground connection at the instrument panel crossmember

Fig 4: Tightening specification - ground connection at the instrument panel crossmember

Courtesy of AUDI OF AMERICA, LLC

-- Tightening specification - nut -arrow-. Refer to Wiring Diagram.
