Crash Bolster, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the instrument panel cover on the driver side. Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .
Market-Specific for North America:
-- Remove the driver side knee airbag. Refer to KNEE AIRBAG WITH IGNITER, REMOVING AND INSTALLING, DRIVER SIDE .
Continuation for All Vehicles:
-- Remove the footwell vent on the driver side. Refer to OVERVIEW - AIR ROUTING AND AIR DISTRIBUTION IN VEHICLE INTERIOR .
-- Loosen the Data Bus on Board Diagnostic Interface -J533-. Refer to DATA BUS ON BOARD DIAGNOSTIC INTERFACE -J533-, REMOVING AND INSTALLING .

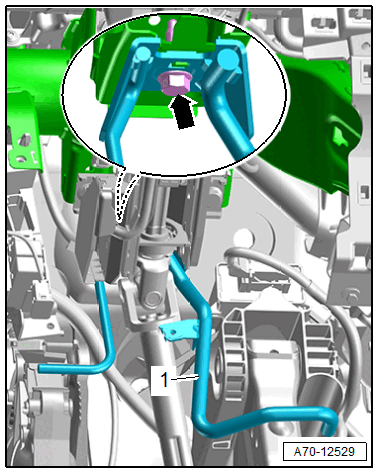

-- Remove the bolt -arrow-.
-- Disengage the crash bolster -1- from the instrument panel crossmember and guide it out.
