Side Window Air Duct/Vent, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the door trim panel. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .

-- Place the door trim panel on a soft and clean surface.

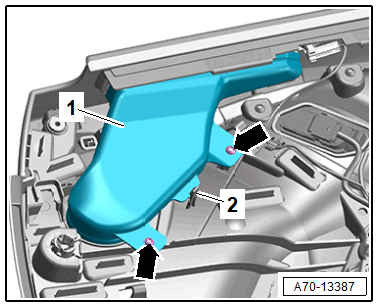

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Release the retainer -2- and remove the air duct -1- from the door trim panel.

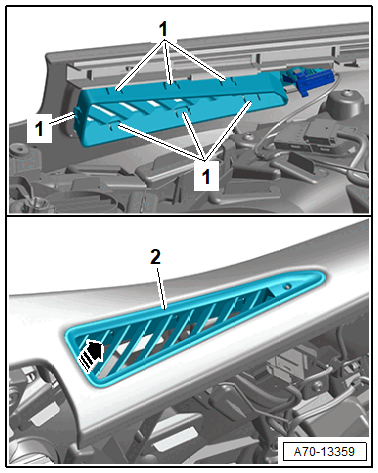

-- Use a flat-head screwdriver to release the retainers -1- and push the vent -2- upward and out of the door trim panel -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Unhook and remove the vent from the door trim panel.

-- Driver side vent: unclip the Central Locking -Safe- Indicator Lamp -K133-.
