Front Armrest, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the door trim panel. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .

-- Place the door trim panel on a soft and clean surface.

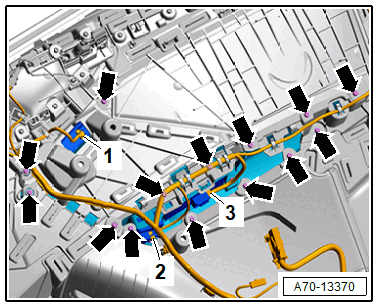

-- Equipped on some models: disconnect the connectors -1 and 2-.

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -3-.

-- Remove the bolts -arrows-.

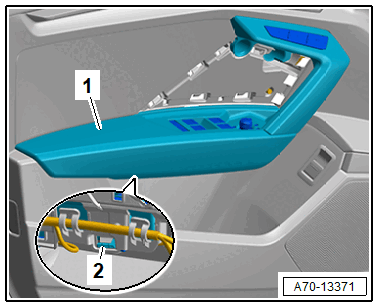

-- Loosen and remove the pull handle -1- with the armrest from the door trim.

Courtesy of AUDI OF AMERICA, LLC

-- To do so, release the retainer at the door trim panel -2-.

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

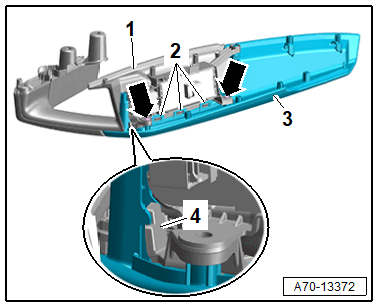

-- Release the retainers -2 and 4- using a flat-head screwdriver.

-- Loosen the armrest -3- from the pull handle -1- and remove.
