Luggage Compartment Side Trim Panel, Removing And Installing, SPORTBACK: Removing

WARNING: This page is about a different car, the 2022 Audi S3, 2022 Audi RS 3, 2022 Audi A3 Quattro, and 2022 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

-- Equipped on some models: remove the side cushion. Refer to OVERVIEW - COVER AND CUSHION .

-- Remove luggage compartment cover.

-- Remove the tie down. Refer to TIE DOWN, REMOVING AND INSTALLING .

-- Remove the luggage compartment floor.

-- Remove the luggage compartment trim support. Refer to LUGGAGE COMPARTMENT SUPPORT, REMOVING AND INSTALLING .

-- Remove the lock carrier trim panel. Refer to LOCK CARRIER TRIM PANEL, REMOVING AND INSTALLING .

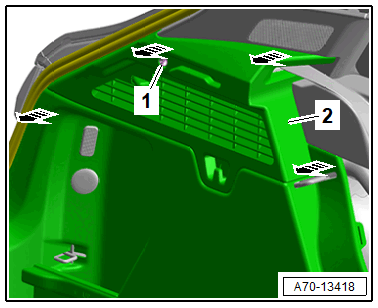

-- Remove the bolt -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Free up the luggage compartment side trim panel -2- in the area of the rear lid seal.

-- Unclip the luggage compartment side trim panel from the body and the trim panels in the direction of -arrows-, using the trim removal wedge from Scraper Set: VAS6845 .

-- Disengage the luggage compartment side trim panel from the tie down.

-- Pull the luggage compartment side trim panel slightly inward and disconnect the connectors.

-- Remove the luggage compartment side trim panel.
