Overview - Wheel Bearing, Fwd With Torsion Beam Axle

WARNING: This page is about a different car, the 2022 Audi S3, 2022 Audi RS 3, 2022 Audi A3 Quattro, and 2022 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

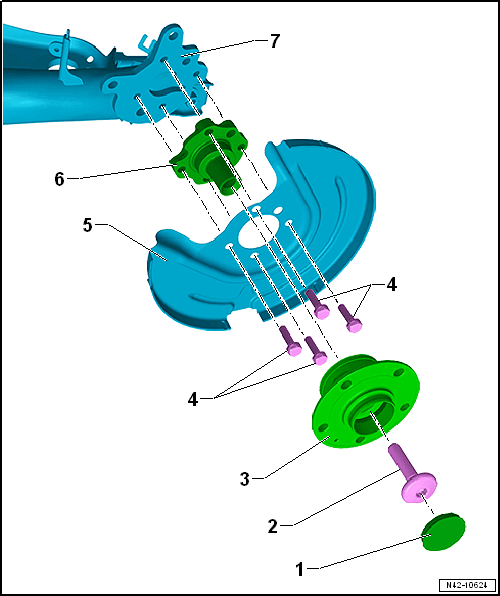

Fig 1: Exploded View Of Wheel Bearing, Torsion Beam Axle FWD

Courtesy of AUDI OF AMERICA, LLC

Dust Cap
- Replace after removing
- Removing and Installing. Refer to WHEEL BEARING UNIT, REMOVING AND INSTALLING .
Bolt
- 200 Nm +90°
- Replace after removing
- Loosening and tightening. Refer to DRIVE AXLE THREADED CONNECTION, LOOSENING AND TIGHTENING
- Clean the threads in the wheel bearing housing with a thread tap before installing.
Wheel Bearing Unit
- With sensor ring for ABS speed sensor
- Check sensor ring. Refer to ABS SENSOR RING, CHECKING
- Removing and Installing. Refer to WHEEL BEARING UNIT, REMOVING AND INSTALLING, FWD WITH TORSION BEAM AXLE .
- Cannot be disassembled
- Handling the wheel bearing. Refer to Fig 2.
Bolts
- 30 Nm +90°
- Replace after removing
Brake Shield
- Removing and installing. Refer to BRAKE SHIELD, REMOVING AND INSTALLING .
Axle Stub
Axle Beam

Wheel Bearing, Handling

Fig 2: Always Set Wheel Bearing Down On Wheel Hub -2- (Wheel Bearing -1- Facing Up)

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Improper handling and poor cleanliness could increases the risk of wheel bearing damage.

- Note the following instructions for handling the wheel bearing.

Position the wheel bearing -1- so that it faces upward.
Always set the wheel bearing down on the wheel hub -2-.

Never reach inside when lifting the wheel bearing.

Courtesy of AUDI OF AMERICA, LLC
Hold the wheel bearing only on the outside.
