Overview - Door

WARNING: This page is about a different car, the 2022 Audi S3, 2022 Audi RS 3, 2022 Audi A3 Quattro, and 2022 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

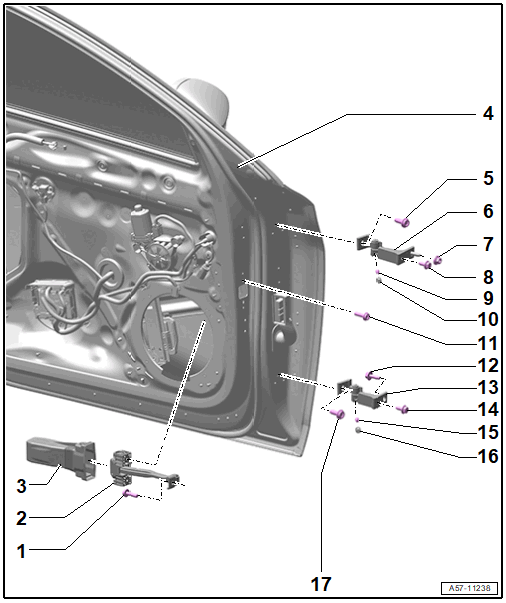

Fig 1: Exploded View Of Door

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 33 Nm
Door Arrester
- Removing and Installing. Refer to DOOR ARRESTER, REMOVING AND INSTALLING .
Cap
- For the door arrester
- Installation position. Refer to Fig 2.
Door
- Removing and Installing. Refer to DOOR, REMOVING AND INSTALLING .
- Adjusting. Refer to DOOR, ADJUSTING .
Bolt
- 50 Nm
Hinge
- Upper
Nut
- 30 Nm
Bolt
- 30 Nm
Set Screw
- 8 Nm
Cap
Bolt
- Always replace after removing
- Quantity: 2
- 8 Nm
Bolt
- 30 Nm
Hinge
- Lower
Bolt
- 30 Nm
Set Screw
- 8 Nm
Cap
Bolt
- 50 Nm

Cap Installation Position

Fig 2: Cap Installation Position

Courtesy of AUDI OF AMERICA, LLC

In the installed position, the lettering on the cap -1- must be readable in the upper installation position.

2 -

FD: Front Door

3 -

Vehicle type

4 -

Left Top / Right Top: Side of the Vehicle
