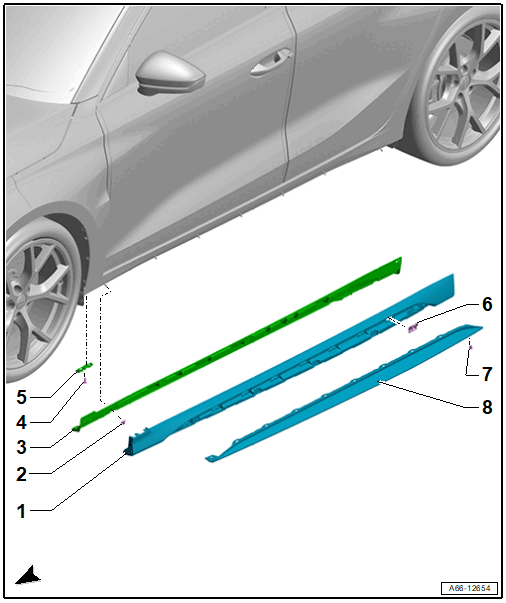

Overview - Side Sill Trim Panel
WARNING: This page is about a different car, the 2022 Audi S3, 2022 Audi RS 3, 2022 Audi A3 Quattro, and 2022 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- Side Sill Trim Panel
- Removing and Installing. Refer to SIDE SILL TRIM PANEL, REMOVING AND INSTALLING .
- Nut
- Quantity: 7
- 2 Nm
- Bracket
- For the side sill trim panel
- Quantity: 9
- Removing and Installing. Refer to COVER STRIP, REMOVING AND INSTALLING .
- Bolt
- Tightening Specification. Refer to OVERVIEW - BODY TRIMS .
- Bracket
- Front
- For the side sill trim panel
- Removing and Installing. Refer to SIDE SILL TRIM PANEL BRACKET, REMOVING AND INSTALLING .
- Mount
- For the side sill trim panel
- Always replace after removing
- Removing and Installing. Refer to SIDE SILL TRIM PANEL MOUNT, REMOVING AND INSTALLING .
- Expanding Rivet
- Quantity: 10
- Cover Strip
- Removing and Installing. Refer to COVER STRIP, REMOVING AND INSTALLING .
